Skid Mounted Air Compressor

Skid Mounted Air Compressor

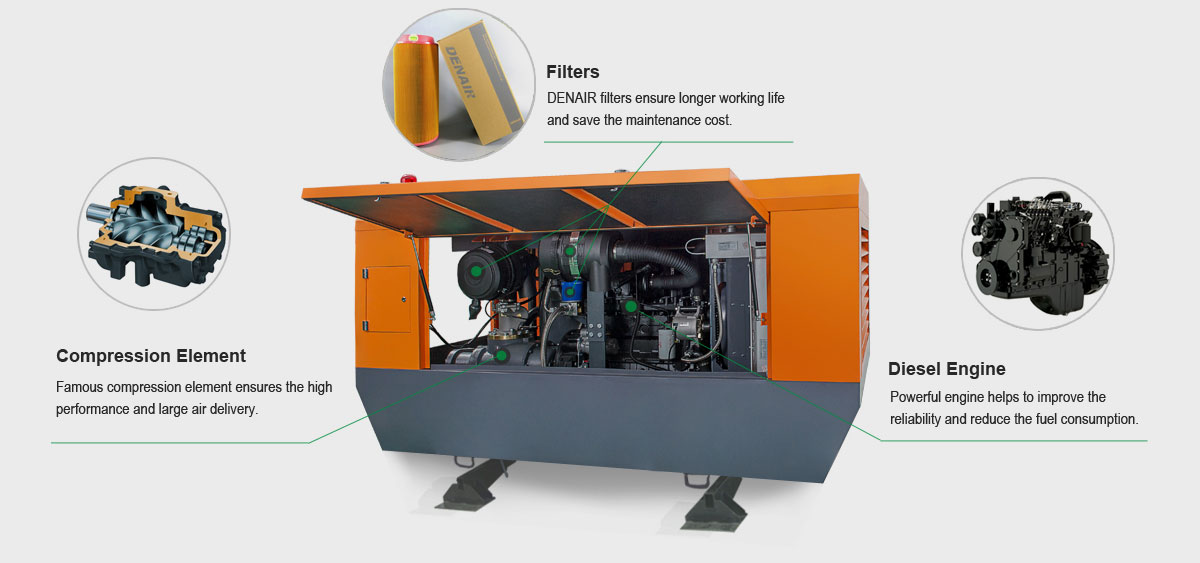

Skid mounted air compressor Advantages:


  • Use Germany KAPP machine and German manufacturing technique to process the compression element, the components manufactured to the highest standards and precision aligned roller-bearings ensure long service life with maximum reliability.
  • Heavy-duty CUMMINS diesel engine for extended operation.
  • Excellent components, for example, Germany MANN oil filter and Siemens electronics for high performance.
  • Automatic operation system helps the operator to master the operating skills quickly, unattended operation and remote control are available.
  • Conform to CE, ISO9001 and energy saving certification, etc.
Skid Mounted Air Compressor Technical Parameters:
Type DACY-4/13 DACY-5/7 DACY-5/10 DACY-6/7 DACY-5/13 DACY-7/7
Machine
Free air delivery* m³/min 4.00 5.00 5.00 6.00 5.31 7.00
cfm 141 177 177 212 187 247
Normal working pressure bar(g) 13 7 10 7 13 7
psig 189 102 145 102 189 102
Maximum design pressure bar(g) 13 7 10 8 13 9
psig 189 102 145 116 189 131
Dimensions
(without towbar)
L(mm) 3120 2210 3120 3120 3120 3120
W(mm) 1860 1410 1860 1860 1860 1860
H(mm) 1800 1365 1800 1800 1800 1800
Weight kG 1500 900 1500 1500 1500 1500
Size and No. of outlet valve G 3/4"*2
G 1-1/4"*1
G 3/4"*3 G 3/4"*2
G 1-1/4"*1
G 3/4"*2
G 1-1/4"*1
G 3/4"*2
G 1-1/4"*1
G 3/4"*2
G 1-1/4"*1
Diesel engine
Manufacturer Cummins Yanmar Cummins Cummins Cummins Cummins
Model QSB3.9-C80-31 4TNV94L QSB3.9-C80-31 QSB3.9-C80-31 QSB3.9-C80-31 QSB3.9-C80-31
Rated power kW 60 34.6 60 60 60 60
hp 80 47 80 80 80 80
Type Turbocharging, Charge air cooling
Bore*Stroke*No.ofcylinders mm 102*120*4 94*110*4 102*120*4 102*120*4 102*120*4 102*120*4
Engine speed (nominal) RPM 2200 2400 2200 2200 2200 2200
Engine speed (unloaded) RPM 1400 1400 1400 1400 1400 1400
Engine oil capacity L 9 7 9 9 9 9
Coolant capacity L 25 8 25 25 25 25
Storage battery current CCA 670 670 670 670 670 670
Fuel tank capacity L 80 70 80 80 80 80
Compressor
Compressed air vessel capacity L 48 30 48 48 48 48
Lubricant capacity L 20 15 20 20 20 20


Type DACY-7/10 DACY-7/13 DACY-10/8 DACY-9/13 DACY-10/10 DACY-12/7 DACY-8/16
Machine
Free air delivery* m³/min 7.00 7.00 10.00 9.00 10.00 12.11 8.01
cfm 247 247 353 318 353 428 283
Normal working pressure bar(g) 10 13 8 13 10 7 16
psig 145 189 116 189 145 102 232
Maximum design pressure bar(g) 10 13 10 13 10 8 16
psig 145 189 145 189 145 116 232
Dimensions
(without towbar)
L(mm) 3120 3360 3360 3360 3360 3360 3740
W(mm) 1860 2010 2010 2010 2010 2010 2110
H(mm) 1800 2050 2050 2050 2050 2050 2240
Weight kG 1500 1700 1700 1700 1700 1700 2050
Size and No. of outlet valve G 3/4"*2
G 1-1/4"*1
G 1 "*2
G 1-1/2"*1
G 1 "*2
G 1-1/2"*1
G 1 "*2
G 1-1/2"*1
G 1 "*2
G 1-1/2"*1
G 1 "*2
G 1-1/2"*1
G 1"*2
G 2"*1
Diesel engine
Manufacturer Cummins Cummins Cummins Cummins Cummins Cummins Cummins
Model QSB3.9-C80-31 QSB3.9-C100-31 QSB3.9-C100-31 QSB3.9-C130-31 QSB3.9-C130-31 QSB3.9-C130-31 QSB5.9-C150-31
Rated power kW 60 74 74 96 96 96 113
hp 80 100 100 130 130 130 150
Type Turbocharging, Charge air cooling
Bore*Stroke*No.ofcylinders mm 102*120*4 102*120*4 102*120*4 102*120*4 102*120*4 102*120*4 102*120*6
Engine speed (nominal) RPM 2200 2300 2300 2200 2500 2400 2100
Engine speed (unloaded) RPM 1400 1400 1400 1400 1400 1400 1400
Engine oil capacity L 9 9 9 9 9 9 16.3
Coolant capacity L 25 28 28 30 30 30 33
Srorage battery current CCA 670 670 670 670 670 670 720
Fuel tank capacity L 80 126 126 126 126 126 152
Compressor
Compressed air vessel capacity L 48 80 80 80 80 80 110
Lubricant capacity L 20 45 45 45 45 45 55


Type DACY-9/15 DACY-10/13 DACY-11/10 DACY-15/8 DACY-12/13 DACY-14/12 DACY-15/10
Machine
Free air delivery* m³/min 9.00 10.02 11.00 15.00 12.00 14.00 15.19
cfm 318 354 388 530 424 494 536
Normal working pressure bar(g) 15 13 10 8 13 12 10
psig 218 189 145 116 189 174 145
Maximum design pressure bar(g) 15 13 10 8 13 12 10
psig 218 189 145 116 189 174 145
Dimensions
(without towbar)
L(mm) 3740 3740 3740 3740 3790 3790 3790
W(mm) 2110 2110 2110 2110 2110 2110 2110
H(mm) 2240 2240 2240 2240 2390 2390 2390
Weight kG 2050 2050 2050 2050 3600 3600 3600
Size and No. of outlet valve G 1"*2
G 2"*1
G 1"*2
G 2"*1
G 1"*2
G 2"*1
G 1"*2
G 2"*1
G 1"*2
G 2"*1
G 1"*2
G 2"*1
G 1"*2
G 2"*1
Diesel engine
Manufacturer Cummins Cummins Cummins Cummins Cummins Cummins Cummins
Model QSB5.9-C150-31 QSB5.9-C150-31 QSB5.9-C150-31 QSB5.9-C150-31 QSB5.9-C180-31 QSB5.9-C180-31 QSB5.9-C180-31
Rated power kW 113 113 113 113 132 132 132
hp 150 150 150 150 180 180 180
Type Turbocharging, Charge air cooling
Bore*Stroke*No.ofcylinders mm 102*120*6 102*120*6 102*120*6 102*120*6 102*120*6 102*120*6 102*120*6
Engine speed (nominal) RPM 2200 2050 2200 2200 2350 2150 2350
Engine speed (unloaded) RPM 1400 1400 1400 1400 1400 1400 1400
Engine oil capacity L 16.3 16.3 16.3 16.3 16.3 16.3 16.3
Coolant capacity L 33 33 33 33 47 47 47
Srorage battery current CCA 720 720 720 720 720 720 720
Fuel tank capacity L 152 152 152 152 294 294 294
Compressor
Compressed air vessel capacity L 110 110 110 110 189 189 189
Lubricant capacity L 55 55 55 55 80 80 80


Type DACY-17/8 DACY-18/7 DACY-13/18 DACY-13/20 DACY-15/16 DACY-17/13 DACY-18/10
Machine
Free air delivery* m³/min 17.00 18.00 13.55 13.00 15.00 17.00 18.00
cfm 600 636 478 459 530 600 636
Normal working pressure bar(g) 8 7 18 20 16 13 10
psig 116 102 261 290 232 189 145
Maximum design pressure bar(g) 8 7 20 20 16 13 10
psig 116 102 290 290 232 189 145
Dimensions
(without towbar)
L(mm) 3790 3790 3920 3920 3920 3920 3920
W(mm) 2110 2110 1800 1800 1800 1800 1800
H(mm) 2390 2390 2380 2380 2380 2380 2380
Weight kG 3600 3600 4000 4000 4000 4000 4000
Size and No. of outlet valve G 1"*2
G 2"*1
G 1"*2
G 2"*1
G 1"*1
G 2-1/2"*1
G 1"*1
G 2-1/2"*1
G 1"*1
G 2-1/2"*1
G 1"*1
G 2-1/2"*1
G 1"*1
G 2-1/2"*1
Diesel engine
Manufacturer Cummins Cummins Cummins Cummins Cummins Cummins Cummins
Model QSB5.9-C180-31 QSB5.9-C180-31 QSC8.3-C215-30 QSC8.3-C215-30 QSC8.3-C215-30 QSC8.3-C215-30 QSC8.3-C215-30
Rated power kW 132 132 160 160 160 160 160
hp 180 180 215 215 215 215 215
Type Turbocharging, Charge air cooling
Bore*Stroke*No.ofcylinders mm 102*120*6 102*120*6 114*135*6 114*135*6 114*135*6 114*135*6 114*135*6
Engine speed (nominal) RPM 2400 2200 2200 2150 2200 2050 2200
Engine speed (unloaded) RPM 1400 1400 1400 1400 1400 1400 1400
Engine oil capacity L 16.3 16.3 27.6 27.6 27.6 27.6 27.6
Coolant capacity L 47 47 50 50 50 50 50
Srorage battery current CCA 720 720 720 720 720 720 720
Fuel tank capacity L 294 294 360 360 360 360 360
Compressor
Compressed air vessel capacity L 189 189 189 189 189 189 189
Lubricant capacity L 80 80 85 85 85 85 85


Type DACY-23/8 DACY-15/18 DACY-17/14 DACY-20/13 DACY-22/10 DACY-24/8 DACY-18/18
Machine
Free air delivery* m³/min 23.00 15.00 17.66 20.67 22.21 24.00 18.28
cfm 812 530 624 730 784 847 645
Normal working pressure bar(g) 8 18 14 13 10 8 18
psig 116 261 203 189 145 116 261
Maximum design pressure bar(g) 8 18 16 13 10 8 18
psig 116 261 232 189 145 116 261
Dimensions
(without towbar)
L(mm) 3920 3920 3920 3920 3920 3920 4150
W(mm) 1800 1800 1800 1800 1800 1800 1960
H(mm) 2380 2380 2380 2380 2380 2380 2450
Weight kG 4000 4000 4000 4000 4000 4000 4400
Size and No. of outlet valve G 1"*1
G 2-1/2"*1
G 1"*1
G 2-1/2"*1
G 1"*1
G 2-1/2"*1
G 1"*1
G 2-1/2"*1
G 1"*1
G 2-1/2"*1
G 1"*1
G 2-1/2"*1
G 1"*1
G 2-1/2"*1
Diesel engine
Manufacturer Cummins Cummins Cummins Cummins Cummins Cummins Cummins
Model QSC8.3-C215-30 QSC8.3-C260-30 QSC8.3-C260-30 QSC8.3-C260-30 QSC8.3-C260-30 QSC8.3-C260-30 QSL8.9-C325-30
Rated power kW 160 194 194 194 194 194 239
hp 215 260 260 260 260 260 325
Type Turbocharging, Charge air cooling
Bore*Stroke*No.ofcylinders mm 114*135*6 114*135*6 114*135*6 114*135*6 114*135*6 114*135*6 114*144.5*6
Engine speed (nominal) RPM 2050 2100 1800 1900 2150 2200 2050
Engine speed (unloaded) RPM 1400 1350 1350 1350 1350 1350 1400
Engine oil capacity L 27.6 27.6 27.6 27.6 27.6 27.6 27.6
Coolant capacity L 50 55 55 55 55 55 70
Srorage battery current CCA 720 720 720 720 720 720 830
Fuel tank capacity L 360 360 360 400 400 400 496
Compressor
Compressed air vessel capacity L 189 189 189 189 189 189 182
Lubricant capacity L 85 90 90 90 90 90 110


Type DACY-19/14 DACY-20/16 DACY-21/15 DACY-23/13 DACY-27/10 DACY-28/8 DACY-22/20
Machine
Free air delivery* m³/min 19.75 20.18 21.00 23.00 27.00 28.00 22.00
cfm 697 713 742 812 953 989 777
Normal working pressure bar(g) 14 16 15 13 10 8 20
psig 203 232 218 189 145 116 290
Maximum design pressure bar(g) 14 16 15 13 10 8 20
psig 203 232 218 189 145 116 290
Dimensions
(without towbar)
L(mm) 4150 4150 4150 4150 4150 4150 4250
W(mm) 1960 1960 1960 1960 1960 1960 2000
H(mm) 2450 2450 2450 2450 2450 2450 2650
Weight kG 4400 4400 4000 4400 4400 4400 5500
Size and No. of outlet valve G 1"*1
G 2-1/2"*1
G 1"*1
G 2-1/2"*1
G 1"*1
G 2-1/2"*1
G 1"*1
G 2-1/2"*1
G 1"*1
G 2-1/2"*1
G 1"*1
G 2-1/2"*1
G 1"*1
G 2-1/2"*1
Diesel engine
Manufacturer Cummins Cummins Cummins Cummins Cummins Cummins Cummins
Model QSL8.9-C325-30 QSL8.9-C325-30 QSL8.9-C325-30 QSL8.9-C325-30 QSL8.9-C325-30 QSL8.9-C325-30 QSL8.9-C360-30
Rated power kW 239 239 239 239 239 239 264
hp 325 325 325 325 325 325 359
Type Turbocharging, Charge air cooling
Bore*Stroke*No.ofcylinders mm 114*144.5*6 114*144.5*6 114*144.5*6 114*144.5*6 114*144.5*6 114*144.5*6 114*144.5*6
Engine speed (nominal) RPM 2000 2050 2100 2100 2050 2100 2100
Engine speed (unloaded) RPM 1400 1400 1400 1400 1400 1400 1400
Engine oil capacity L 27.6 27.6 27.6 27.6 27.6 27.6 27.6
Coolant capacity L 70 70 70 70 70 70 75
Srorage battery current CCA 830 830 830 830 830 830 830
Fuel tank capacity L 496 496 496 496 496 496 540
Compressor
Compressed air vessel capacity L 182 182 182 182 182 182 212
Lubricant capacity L 110 110 110 110 110 110 120


Type DACY-23/15 DACY-25/13 DACY-26/12 DACY-28/10 DACY-32/10 DACY-33/8 DACY-36/7
Machine
Free air delivery* m³/min 23.00 25.00 26.00 28.00 32.25 33.00 36.00
cfm 812 883 918 989 1139 1165 1271
Normal working pressure bar(g) 15 13 12 10 10 8 7
psig 218 189 174 145 145 116 102
Maximum design pressure bar(g) 15 13 12 10 10 8 7
psig 218 189 174 145 145 116 102
Dimensions
(without towbar)
L(mm) 4250 4250 4250 4250 4250 4250 4250
W(mm) 2000 2000 2000 2000 2000 2000 2000
H(mm) 2650 2650 2650 2650 2650 2350 2650
Weight kG 5500 5500 5500 5500 5500 5500 5500
Size and No. of outlet valve G 1"*1
G 2-1/2"*1
G 1"*1
G 2-1/2"*1
G 1"*1
G 2-1/2"*1
G 1"*1
G 2-1/2"*1
G 1"*1
G 2-1/2"*1
G 1"*1
G 2-1/2"*1
G 1"*1
G 2"*1
Diesel engine
Manufacturer Cummins Cummins Cummins Cummins Cummins Cummins Cummins
Model QSL8.9-C360-30 QSL8.9-C360-30 QSL8.9-C360-30 QSL8.9-C360-30 QSL8.9-C360-30 QSL8.9-C360-30 QSL8.9-C360-30
Rated power kW 264 264 264 264 264 264 264
hp 359 359 359 359 359 359 359
Type Turbocharging, Charge air cooling
Bore*Stroke*No.ofcylinders mm 114*144.5*6 114*144.5*6 114*144.5*6 114*144.5*6 114*144.5*6 114*144.5*6 114*144.5*6
Engine speed (nominal) RPM 2050 2100 2050 2100 2050 2100 2100
Engine speed (unloaded) RPM 1400 1400 1400 1400 1400 1400 1400
Engine oil capacity L 27.6 27.6 27.6 27.6 27.6 27.6 27.6
Coolant capacity L 75 75 75 75 75 75 75
Srorage battery current CCA 830 830 830 830 830 830 830
Fuel tank capacity L 540 540 540 540 540 540 540
Compressor
Compressed air vessel capacity L 212 212 212 212 212 212 212
Lubricant capacity L 120 120 120 120 120 120 120


Type DACY-26/25 DACY-34/25 DACY-34/30 DACY-45/10 DACY-33/35 DACY-39/25
Machine
Free air delivery* m³/min 26.00 34.00 34.00 46.38 33.00 39.00
cfm 918 1200 1200 1638 1165 1377
Normal working pressure bar(g) 25 25 30 10 35 25
psig 363 363 435 145 508 363
Maximum design pressure bar(g) 25 25 30 10 35 25
psig 263 363 435 145 508 363
Dimensions
(without towbar)
L(mm) 4700 4700 3900 4412 5000 5000
W(mm) 2100 2100 2100 2160 2200 2200
H(mm) 2900 2900 2300 2900 2900 2900
Weight kG 4800 6800 6500 7000 7200 7200
Size and No. of outlet valve G 2 "*1
G 3/4 "*1
G 2 "*1
G 3/4 "*1
G 2 "*1
G 3/4 "*1
G 1"*1
G 3 "*1
G 2 "*1
G 3/4 "*1
G 2 "*1
G 3/4 "*1
Diesel engine
Manufacturer Cummins Cummins Cummins Cummins Cummins Cummins
Model QSZ13-C550 QSZ13-C550 QSZ13-C550 QSZ13-C550 KTA19-P700 KTA19-P700
Rated power kW 410 410 410 410 522 522
hp 550 550 550 550 700 700
Type Turbocharging, Charge air cooling
Bore*Stroke*No.ofcylinders mm 130*163*6 130*163*6 130*163*6 130*163*6 159*159*6 159*159*6
Engine speed (nominal) RPM 1800 1800 1800 1850 1800 1800
Engine speed (unloaded) RPM 1300 1300 1350 1350 1300 1300
Engine oil capacity L 35 35 35 35 38 38
Coolant capacity L 160 160 160 160 160 160
Srorage battery current CCA 930 930 930 930 300Ah 300Ah
Fuel tank capacity L 600 600 800 660 800 800
Compressor
Compressed air vessel capacity L 247 247 247 247 247 247
Lubricant capacity L 140 140 140 140 140 140

*)Free air delivery in accordance with ISO 1217 : 2009, Annex C: Absolute intake pressure 1 bar (a), cooling and air intake temperature 20°C.
Note: Tier-4 standard engine is also available to tailor; Skid-mounted type is available.

Specifications are subject to change without notice.



Rotary Screw Air Compressor

Download

PM VSD Double Stage Air Compressor

Download

Diesel Portable Screw Air Compressor II

Download

Diesel Portable Screw Air Compressor III

Download

Oil-free Air Compressor

Download

Compressed Air Treatment Equipment

Download

You may Like:


Free Consultation:

If you are interested in DENAIR air compressor, please contact us via
email: info@denair.net or send your inquiry in the form below.we will reply you within 24 hours.


*

*

*

Related Information:

Right Air Compressor
In our daily sales work, we have noticed that some of air compressor users dont really understand how to choose the right compressor specially if they are only responsible for purchase and finance departments...
Details
Read More >

DENAIR Compressor LOGO
Like us on Facebook Follow us on YouTube Follow us on Twitter Follow us on LinkedIn

Privacy Policy © 2006 Denair Energy Saving Technology (Shanghai) PLC.
