Adsorption Dryer

Adsorption Dryer

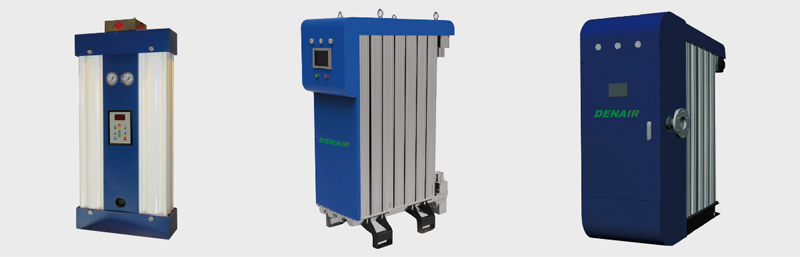

DAD Series Adsorption Dryer:

Our main principle in line with the customer's interests, through continuous efforts, innovation and research, we introduced a new generation of regenerative air filtration system with more complete features, efficient, energy-saving, high reliability, cost-saving, less installation space and easy maintenance. We are grand launch of a new generation of heatless regeneration adsorption drying system product, DAD series. Its compact, and function is more complete, high efficient, simple to operate, economical, high energy saving, more reliability, more space saving installation and maintenance is convenient.

Adsorption Dryer

Use of high efficiency refrigeration dryers and line filters fitted with condensate drains will remove water vapor, oil, and wear particles, in many cases it is not enough. Some production systems and processes demand an even higher quality of compressed air. DAD “End point of use” heatless regenerative adsorption dryers can provide the perfect air quality, without the need for drying the complete compressed air installation, which can be costly and unnecessary.

Adsorption Dryer System Chart

This range should also be used when the ambient temperature goes below freezing point, to avoid ice building in pipes and applications. The DAD range is typically used in the chemical, food and pharmaceutical industry and whenever a PDP <3°C is requested.

APPLICATIONS:

Heatless regenerative adsorption dryer is widely used in various industrial applications included

Adsorption Dryer application

Type Flow rate
(7bar,Nm3/min)
Dimensions(mm) Picture
Depth Width Height
DAD-010 0.1 300 160 450 In smaill quantities
DAD-020 0.2 300 160 740
DAD-025 0.25 300 160 940
DAD-030 0.3 416 122 536 In large quantitie
DAD-045 0.45 416 122 656
DAD-060 0.6 416 122 816
DAD-070 0.7 416 122 926
DAD-100 1 416 122 1181
DAD-120 1.2 615 263 1250 In smaill quantities
DAD-150 1.5 615 263 1480
DAD-200 2 615 263 1900
DAD-240 2.4 735 263 1250
DAD-300 3 735 263 1480
DAD-360 3.6 855 263 1250
DAD-400 4 735 263 1900
DAD-45-S 4.5 565 420 1750 In large quantitie
DAD-60-S 6 685 420 1750
DAD-75-S 7.5 805 420 1750
DAD-88-S 8.8 925 420 1750
DAD-110-S 11 1045 420 1750
DAD-132-S 13.2 1165 420 1750
DAD-154-S 15.4 1285 420 1750
DAD-176-S 17.6 1405 420 1750
DAD-198-S 19.8 1525 420 1750
DAD-220-S 22 1050 656 1750
DAD-264-S 26.4 1170 656 1750
DAD-308-S 30.8 1290 656 1750
DAD-352-S 35.2 1410 656 1750
DAD-400-S 40 1530 656 1750
DAD-440-S 440 1650 656 1750

Capacity Correction Factors

In order to select the right adsorption dryer it is important to know the actual working condition and air consumption of the system. Based on the standard working conditions listed in the technical specifications and of the below mentioned correction factors you will be able to select the correct model, to suit the application.

Inlet pressure barg(psig) 4(58) 5(72) 6(87) 7(100) 8(116) 9(130) 10(145) 11(116) 12(174) 13(189) 14(203) 15(218) 16(232)
Correction factor 0.62 0.75 0.87 1.00 1.12 1.25 1.37 1.50 1.62 1.75 1.87 2.00 2.12
Inlet temperature ºC(ºF) 20(68) 25(77) 30(86) 35(95) 40(104) 45(113) 50(112)
Correction factor 1.07 1.06 1.04 1.00 0.88 0.78 0.55
Pressure dew Point ºC(ºF) -40(-40) -70(-70)
Correction factor 1 0.7
